C002332_15_CR3_User_Manual 22

Save Settings

1.9.8 - Conguration for Toshiba Bluetooth Stack Instructions (continued)

3a. Go to http://www.codecorp.com/bdaddr.php and create a QuickConnect code using the address from step 3. Use

the CodeXML Router/ 2-way applications section if CodeXML Router will be installed. Else create a QuickConnect

Code using the section for Serial Applications.

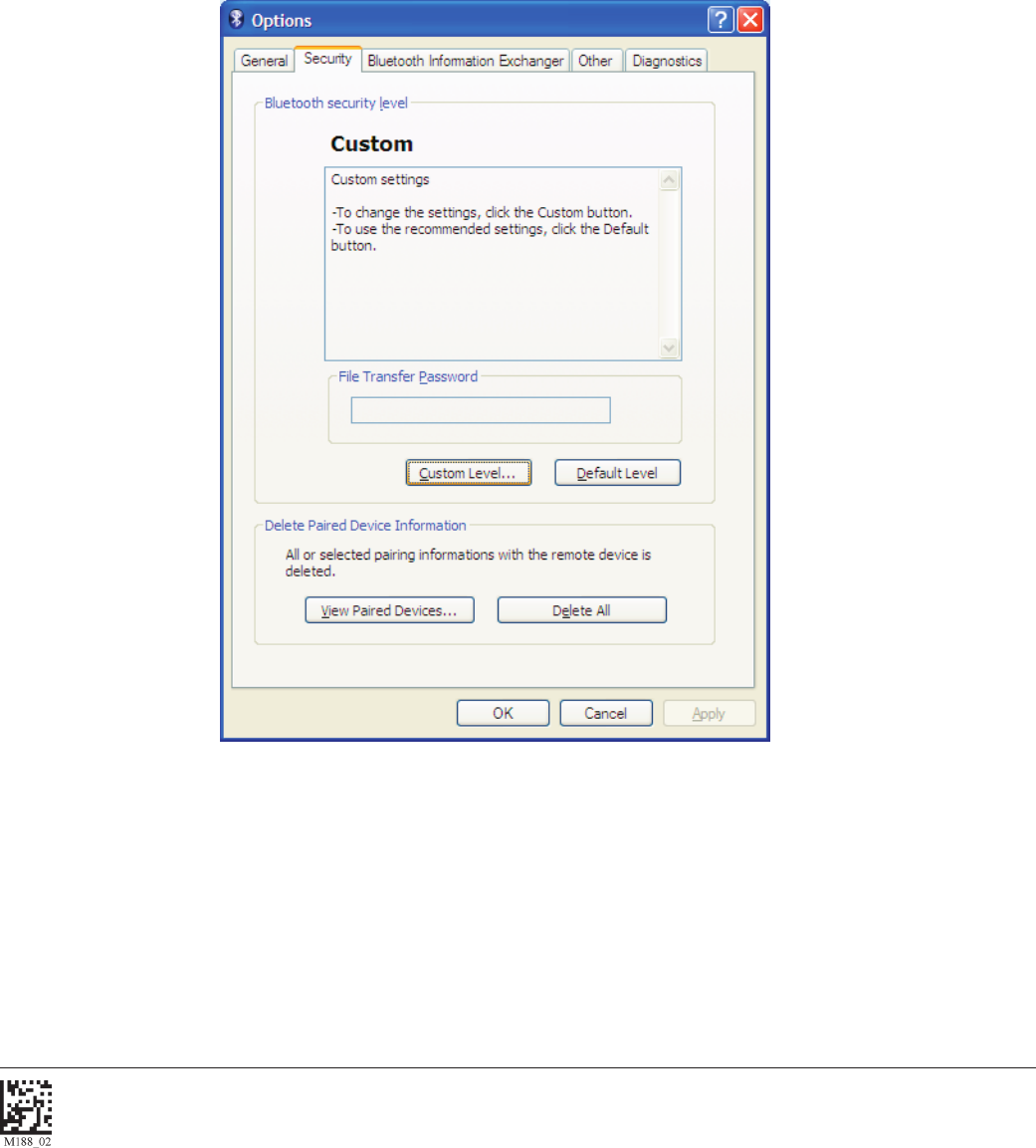

4. Optional – To remove the Passkey dialogue when connecting, Select the Security TAB and Select Custom Level.
